DNSSEC

Kyle Rankin

Director of Engineering Operations

Artemis Internet, Inc.

http://greenfly.org/talks/security/dnssec.html

Agenda

• Introduction
• How DNS Works
• DNS Security Issues
• How DNSSEC Works
• DNSSEC Terminology
• New DNSSEC Record Types
• DNSSEC Look-aside Validation
• Implementing DNSSEC
• Current DNSSEC Adoption
• DANE
• Questions?

How DNS Works

• Primary job: converting hostnames to IPs
• Client sends request to local DNS server
• "What is the IP for www.greenfly.org?"
• DNS server starts recursive query
• To play at home: dig +trace www.greenfly.org.

Tracing a Recursive Query

1. ns1.someisp.com to root: www.greenfly.org?
2. root to ns1.someisp.com: I don't know, ask a org nameserver. Here are their addresses...
3. ns1.someisp.com to org: www.greenfly.org?
4. org to ns1.someisp.com: No clue, but ns1.greenfly.org and ns2.greenfly.org know about it. Here are their addresses...
5. ns1.someisp.com to ns2.greenfly.org: www.greenfly.org?
6. ns2.greenfly.org to ns1.someisp.com: 64.142.56.172
7. ns1.someisp.com to OS: 64.142.56.172
8. OS to browser: 64.142.56.172

DNS Security Issues

• DNS designed to be an open, friendly service
• DNS queries and responses are not encrypted
• Domain names sometimes look alike (google.com vs googIe.com)
• Companies can't always register their name on all TLDs (artemis.com)
• Many DNS servers (open resolvers) will perform recursive queries for anyone who asks
• Open resolvers heavily used in modern DNS amplication DDOS attacks
• DNS subject to MitM attacks
• DNS spoofing/cache poisoning attacks.

DNSSEC Addresses

• DNS designed to be an open, friendly service
• DNS queries and responses are not encrypted
• Domain names sometimes look alike (google.com vs googIe.com)
• Companies can't always register their name on all TLDs (artemis.com)
• Many DNS servers (open resolvers) will perform recursive queries for anyone who asks
• Open resolvers heavily used in modern DNS amplication DDOS attacks
• DNS subject to MitM attacks
• DNS spoofing/cache poisoning attacks.

How DNSSEC Works

• Some similarities with CA system
• Uses public-key cryptography to sign every DNS record for a zone
• DNS servers generate key pair, sign records with private key
• Root DNS servers have key pair, DNSSEC-enabled
• DNSSEC-enabled TLDs get key signatures signed, published by root DNS
• DNSSEC-enabled zones get key signatures signed, published by TLD
• DNSSEC-capable resolvers anchor trust in root DNS keys
• When DNSSEC records resolve, chain of trust is followed
• If record tampered with, signature won't match
• If record doesn't exist, absence is also signed.

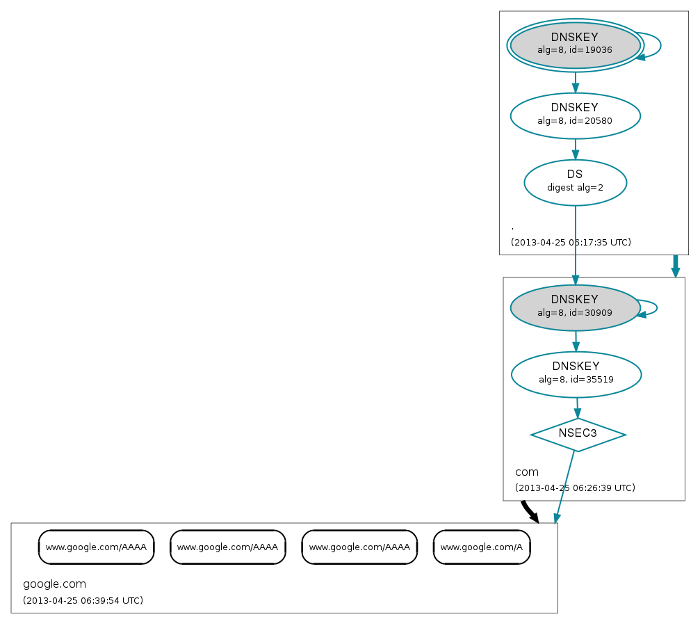

Trust graph for www.google.com

DNSSEC Terminology

• RR - Resource Record: smallest unit of data in a zone (A, NS...)
• RRSET - Complete Set of Resource Records (all NS records or A records for a name)
• KSK - Key-Signing Key. Signs DNSKEY records in a zone
• ZSK - Zone-Signing Key. Signs all of the other records in a zone
• SEP - Secure Entry Point. Flag set in key to denote it as a KSK
• Separate KSK, ZSK not required, but best practice
• Allows larger KSK, easier rotation of ZSKs.

New DNSSEC Record Types:

• DNSKEY - A public key for the zone, either KSK or ZSK
• RRSIG - Resource Record Signature, contains a signature for an RRSET
• NSEC - Next Secure, used in "negative answers" to prove whether a name exists or not
• NSEC3 - Next Secure (version 3). Like NSEC, protects against "zone walking"
• DS - Delegation Signer. Contains KSK signature and submitted to zone parent as part of chain of trust
• DLV - DNSSEC Look-aside Validation. Much like DS records, used when DS records not supported.

DNSSEC Look-aside Validation

• Work-around solution until DNSSEC is fully adopted by TLDs
• Or if a registrar doesn't support DNSSEC
• Changes trust anchor from root to a third-party, like dlv.isc.org
• Requires DNS resolvers to add/trust third-party keys.

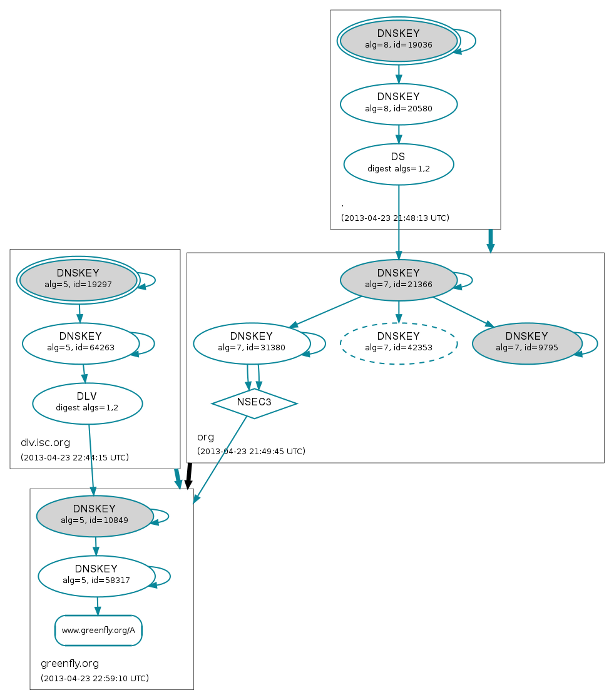

Trust graph for www.greenfly.org

Implementing DNSSEC

• Create KSK and ZSK

$ dnssec-keygen -a RSASHA1 -b 2048 -n ZONE -f KSK greenfly.org
$ dnssec-keygen -a RSASHA1 -b 1024 -n ZONE greenfly.org

• Include references to keys in zone file (db.greenfly.org):

$INCLUDE Kgreenfly.org.+005+10849.key ; KSK
$INCLUDE Kgreenfly.org.+005+58317.key ; ZSK

• Sign the zone using KSK and ZSK:

dnssec-signzone -o greenfly.org -k Kgreenfly.org.+005+10849 \
  db.greenfly.org Kgreenfly.org.+005+58317.key

• Or if using DLV:

dnssec-signzone -l dlv.isc.org -o greenfly.org -k Kgreenfly.org.+005+10849 \
  db.greenfly.org Kgreenfly.org.+005+58317.key

Implementing DNSSEC Continued

• Configure BIND to use signed zone:

zone "greenfly.org" {
  type master;
  file "/etc/bind/db.greenfly.org.signed";
  allow-transfer { slaves; };
};

• Enable DNSSEC in BIND masters and slaves:

options {
  dnssec-enable yes;
  dnssec-validation yes;
};

• To validate DLV zones, add additional BIND option and trusted key:

options { dnssec-lookaside . trust-anchor dlv.isc.org.; };
trusted-keys {
        dlv.isc.org. 257 3 5 "BEAAAAPHMu/5onzrEE7z1egmhg/WPO0+juoZrW3euWEn4MxDCE1+lLy2 brhQv5rN32RKtMzX6Mj70jdzeND4XknW58dnJNPCxn8+jAGl2FZLK8t+ 1uq4W+nnA3qO2+DL+k6BD4mewMLbIYFwe0PG73Te9fZ2kJb56dhgMde5 ymX4BI/oQ+cAK50/xvJv00Frf8kw6ucMTwFlgPe+jnGxPPEmHAte/URk Y62ZfkLoBAADLHQ9IrS2tryAe7mbBZVcOwIeU/Rw/mRx/vwwMCTgNboM QKtUdvNXDrYJDSHZws3xiRXF1Rf+al9UmZfSav/4NWLKjHzpT59k/VSt TDN0YUuWrBNh";
};

Sample DNSSEC Query Result

$ dig +dnssec www.greenfly.org

; <<>> DiG 9.8.1-P1 <<>> +dnssec www.greenfly.org
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 13093
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 3, ADDITIONAL: 5

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags: do; udp: 4096
;; QUESTION SECTION:
;www.greenfly.org.              IN      A

;; ANSWER SECTION:
www.greenfly.org.       900     IN      A       64.142.56.172
www.greenfly.org.       900     IN      RRSIG   A 5 3 900 20130523213855 20130423213855 58317 greenfly.org. cZS1G2Jj3FNB0UrU4W+LbpCJlvVa+3yos1ni5V0pct4x4lWvXGQNoh1G /uFFJ62YRYXskL/c17wiAEIqsJ0O/wzek5KFWAoiJ3zW051l9c/8KPGF 7LzmEumdAVM2MmrPVu+PKGfilPlfofjwJLbgVhyYqepbbD8xv3bmg0Np YnM=

;; AUTHORITY SECTION:
greenfly.org.           900     IN      NS      ns2.greenfly.org.
greenfly.org.           900     IN      NS      ns1.greenfly.org.
greenfly.org.           900     IN      RRSIG   NS 5 2 900 20130523213855 20130423213855 58317 greenfly.org. d/7E3iCxzS/qBSOl/x7m/yMMqbl5mUGH7tVw/j7U/qyC7D9YZJIXNp3J uU8vueo09cZf+yjwHusdWDWgdW8mkAVoGR5K/azoY4o2xRBvt8Z5pf3a BqmNIHzROZkf6BOrx6Nqv65npSGoNLQBoEc90FvDFe/N5I27LBTIxCv4 3UQ=

;; ADDITIONAL SECTION:
ns1.greenfly.org.       900     IN      A       64.142.56.172
ns2.greenfly.org.       900     IN      A       75.101.46.232
ns1.greenfly.org.       900     IN      RRSIG   A 5 3 900 20130523213855 20130423213855 58317 greenfly.org. VDeJSlfEYRwHkjRnCvmDXFHneG3Fhw15mCSALT8m8fOtQkMroI8t0qu3 K8Tdt4q8/t1JYucpwQbpjsR3f+rmJc0t4L7HSVA/1LHajOqA+Wn2XH8L Rp01qVkeBIZ7g+K7LY2XRU3DGSzbeFUKrViqtakbTQxZ9o3Oj6ZqL0Pv 0nQ=
ns2.greenfly.org.       900     IN      RRSIG   A 5 3 900 20130523213855 20130423213855 58317 greenfly.org. dUU/6bbc6sHoSl+e2uGwoEXLMGyr4Qaedk3E74ArnUOb4VViBd3CxvGF SPG2QK3AggDv8z3+9Wm6NA11oTFcuIGnbBarxDQIrbERHFfcSQaekvSR UcSSD7wft9YO7UTIiQrc8LkItXZAKd72Gy1ZP4mhhLxwwOIhlHshQ9d2 uTY=

;; Query time: 196 msec
;; SERVER: 64.142.56.172#53(64.142.56.172)
;; WHEN: Fri Apr 26 16:13:22 2013
;; MSG SIZE  rcvd: 817

Current DNSSEC Adoption

• DNSSEC Deployed at root zone on July 15, 2010
• 463 Total TLDs in root zone
• 271 TLDs are signed
• 265 TLDs have trust anchors published as DS records in the root zone
• 4 TLDs (.ee, .kg, .th, .ua) also have trust anchors published in the ISC DLV Repository
• (Data from ICANN TLD DNSSEC report accurate as of 2014-02-22.)

DANE

• DANE (DNS-based Authentication of Named Entities) proposed on top of DNSSEC
• Defined in RFC 6698
• DANE authenticates TLS w/o CAs using DNSSEC-signed keys
• Shifts trust from CAs to root DNS, TLDs, and DNS admin
• Supported in Chrome since 2011
• Supported in Firefox with add-on.

Questions?

Additional Resources

• Collection of DNSSEC information: http://dnssec.net/
• ISC's DLV Documentation: https://dlv.isc.org
• RFC4033: DNS Security Introduction and Requirements: https://tools.ietf.org/html/rfc4033
• RFC4034: DNSSEC Resource Records: https://tools.ietf.org/html/rfc4034
• RFC4035: Protocol modifications for DNSSEC: https://tools.ietf.org/html/rfc4035
• RFC4641: DNSSEC Operational Practices: https://tools.ietf.org/html/rfc4641
• DNSSEC HOWTO: http://www.nlnetlabs.nl/publications/dnssec_howto/
• ICANN TLD DNSSEC Report: http://stats.research.icann.org/dns/tld_report/
• DNS Visualizer: http://dnsviz.net
• http://greenfly.org/talks/security/dnssec.html
