Image Damaged Drives

Use dd_rhelp

1. mount the destination drive
   knoppix@tty1[knoppix]$ sudo mount -o rw /dev/hdb1 /mnt/hdb1
2. run dd_rhelp
   knoppix@tty1[knoppix]$ sudo dd_rhelp /dev/hda1 /mnt/hdb1/hda1_rescue.img
3. fsck the image
   knoppix@tty1[knoppix]$ sudo fsck -y /mnt/hdb1/hda1_rescue.img
4. mount the image loopback, or reimage to another drive

Restore Partition Tables

Restore Partition Tables

Gpart

• short for "Guess Partition"
• works best with primary partitions
• not perfect

Restore Partition Tables

Run Gpart

First run gpart without the -W option to test

• root@ttyp0[/]# gpart /dev/hda

Restore Partition Tables

Run Gpart

First run gpart without the -W option to test

• root@ttyp0[/]# gpart /dev/hda

Then use -W to actually write the changes

• root@ttyp0[/]# gpart -W /dev/hda /dev/hda

Restore Partition Tables

Run Gpart

First run gpart without the -W option to test

• root@ttyp0[/]# gpart /dev/hda

Then use -W to actually write the changes

• root@ttyp0[/]# gpart -W /dev/hda /dev/hda

Tweak the results

Recover Deleted Files

Recover Deleted Files

Let's clear out this directory...

Recover Deleted Files

Let's clear out this directory...

root@tty1[/]# rm -rf ./*

Recover Deleted Files

Let's clear out this directory...

root@tty1[/]# rm -rf ./*

. . .

Recover Deleted Files

Let's clear out this directory...

root@tty1[ / ]# rm -rf ./*

. . . / ?!

Recover Deleted Files

Let's clear out this directory...

root@tty1[/]# rm -rf ./*

CTRL-C!

CTRL-C!

Recover Deleted Files

Use unrm and lazarus from The Coroner's Toolkit to recover deleted files.

Recover Deleted Files

Use unrm and lazarus from The Coroner's Toolkit to recover deleted files.

1. Prepare the partition to recover (/dev/hda1 here)
2. Prepare a data partition (/dev/hdb1 here)
3. Run unrm
4. Run lazarus on unrm output
5. Review lazarus output

Recover Deleted Files

Prepare the partition to recover

• Turn off the machine!

Recover Deleted Files

Prepare the partition to recover

• Turn off the machine!
• Boot from a rescue disk (like Knoppix) that won't mount the drive by default

Recover Deleted Files

Prepare the partition to recover

• Turn off the machine!
• Boot from a rescue disk (like Knoppix) that won't mount the drive by default
• Mount the partition read-only
  root@tty1[]# mount -o ro /dev/hda1 /mnt/hda1

Recover Deleted Files

Prepare a data partition

• At least 220% of recovery partition free space
  100% for unrm, 100% for lazarus, and ~20% for overhead

Recover Deleted Files

Prepare a data partition

• At least 220% of recovery partition free space
  100% for unrm, 100% for lazarus, and ~20% for overhead
• Must be a different partition than the one to recover

Recover Deleted Files

Prepare a data partition

• At least 220% of recovery partition free space
  100% for unrm, 100% for lazarus, and ~20% for overhead
• Must be a different partition than the one to recover
• Mount read-write
  root@tty1[]# mount -o rw /dev/hdb1 /mnt/hdb1

Recover Deleted Files

Run unrm

1. Make a directory to store the unrm output
   root@tty1[]# mkdir /mnt/hdb1/unrm

Recover Deleted Files

Run unrm

1. Make a directory to store the unrm output
   root@tty1[]# mkdir /mnt/hdb1/unrm
2. Run unrm
   root@tty1[]# unrm /dev/hda1 > /mnt/hdb1/unrm/output

Recover Deleted Files

Run lazarus on unrm output

1. Make a directory to store recovered blocks in unrm dir
   root@tty1[]# cd /mnt/hdb1/unrm; mkdir blocks

Recover Deleted Files

Run lazarus on unrm output

1. Make a directory to store recovered blocks in unrm dir
   root@tty1[]# cd /mnt/hdb1/unrm; mkdir blocks
2. Run lazarus on the unrm output file and output
   root@tty1[unrm]# lazarus -h -w . -D blocks output
   (-h: HTML output, -w: where to store HTML frames, -D: where to store files it recovers)

Recover Deleted Files

Review lazarus output

• Grep within blocks directory for keywords

Recover Deleted Files

Review lazarus output

• Grep within blocks directory for keywords

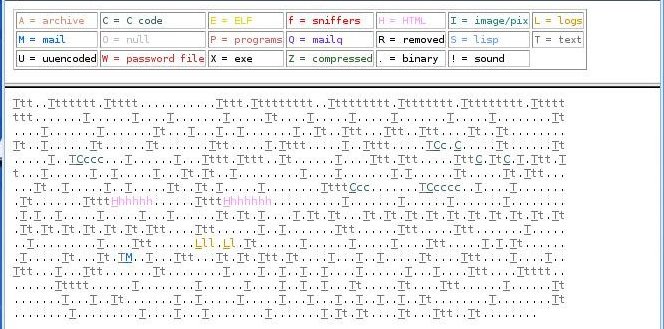

• View the HTML output
  root@tty1# mozilla file:///mnt/hda2/unrm/output.frame.html


Linux Recovery Questions?

The Windows "Recovery" Disk

The Windows "Recovery" Disk

Knoppix the Windows Recovery Disk

Knoppix the Windows Recovery Disk

What Knoppix can do

• Write to the full disk (even NTFS)
• Fix boot.ini
• Scan for viruses
• Install files from .cabs
• Blank passwords
• Edit the registry

Reset the Windows Boot Loader

Reset the Windows Boot Loader

• The Knoppix equivalent of fdisk /mbr:
  knoppix@tty1[knoppix]$ sudo install-mbr /dev/hda

Restore Corrupted System Files

Restore Corrupted System Files

• Mount the Windows filesystem read-write

Restore Corrupted System Files

• Mount the Windows filesystem read-write
• Find a .cab file on the system that contains the file you need

Restore Corrupted System Files

• Mount the Windows filesystem read-write
• Find a .cab file on the system that contains the file you need
• Then use cabextract to extract the file:
  knoppix@tty1[knoppix]$ cd /mnt/hda1/winnt/system32/
knoppix@tty1[system32]$ sudo cabextract -F ntdll.dll "/mnt/hda1/winnt/ServicePackFiles/i386/sp4.cab"

Reset Windows Passwords

Reset Windows Passwords

• Get the latest chntpw deb from http://packages.debian.org/unstable/admin/chntpw

Reset Windows Passwords

• Get the latest chntpw deb from http://packages.debian.org/unstable/admin/chntpw
• Extract the binary from the deb:
  $ alien --to-tgz chntpw_0.99.2-1_i386.deb
$ tar xvzf chntpw_0.99.2.tgz ./usr/sbin/chntpw
$ mv ./usr/sbin/chntpw ~/.dist/bin/

Reset Windows Passwords

• Get the latest chntpw deb from http://packages.debian.org/unstable/admin/chntpw
• Extract the binary from the deb:
  $ alien --to-tgz chntpw_0.99.2-1_i386.deb
$ tar xvzf chntpw_0.99.2.tgz ./usr/sbin/chntpw
$ mv ./usr/sbin/chntpw ~/.dist/bin/
• Mount the Windows partition read-write

Reset Windows Passwords

• Get the latest chntpw deb from http://packages.debian.org/unstable/admin/chntpw
• Extract the binary from the deb:
  $ alien --to-tgz chntpw_0.99.2-1_i386.deb
$ tar xvzf chntpw_0.99.2.tgz ./usr/sbin/chntpw
$ mv ./usr/sbin/chntpw ~/.dist/bin/
• Mount the Windows partition read-write
• Change to the winnt(or windows)/system32/config directory

Reset Windows Passwords

• Get the latest chntpw deb from http://packages.debian.org/unstable/admin/chntpw
• Extract the binary from the deb:
  $ alien --to-tgz chntpw_0.99.2-1_i386.deb
$ tar xvzf chntpw_0.99.2.tgz ./usr/sbin/chntpw
$ mv ./usr/sbin/chntpw ~/.dist/bin/
• Mount the Windows partition read-write
• Change to the winnt(or windows)/system32/config directory
• Blank the Administrator password:
  $ chntpw SAM

Reset Windows Passwords

• Get the latest chntpw deb from http://packages.debian.org/unstable/admin/chntpw
• Extract the binary from the deb:
  $ alien --to-tgz chntpw_0.99.2-1_i386.deb
$ tar xvzf chntpw_0.99.2.tgz ./usr/sbin/chntpw
$ mv ./usr/sbin/chntpw ~/.dist/bin/
• Mount the Windows partition read-write
• Change to the winnt(or windows)/system32/config directory
• Blank the Administrator password:
  $ chntpw SAM
• Blank other user passwords:
  $ chntpw -u username SAM

Edit the Windows Registry

Edit the Windows Registry

• Be Careful

Edit the Windows Registry

• Be Careful
• Use chntpw with the -e option on the registry hive
  $ chntpw -e SOFTWARE

Edit the Windows Registry

• Be Careful
• Use chntpw with the -e option on the registry hive
  $ chntpw -e SOFTWARE
• Browse the registry with cd, ls, cat
• Add, edit, and delete keys
• q to quit, ? for help

Edit the Windows Registry

• Be Careful
• Use chntpw with the -e option on the registry hive
  $ chntpw -e SOFTWARE
• Browse the registry with cd, ls, cat
• Add, edit, and delete keys
• q to quit, ? for help
• Unmount the filesystem to ensure changes

Any Questions?

Other Resources

• Official Knoppix Website:
http://www.knoppix.org
• Unofficial Knoppix Forum (English):
http://www.knoppix.net
